Fs Compact Liquid Cooling Chiller System for Skin Hair Removal Machine Laser Treatment

❄️Product Introduction

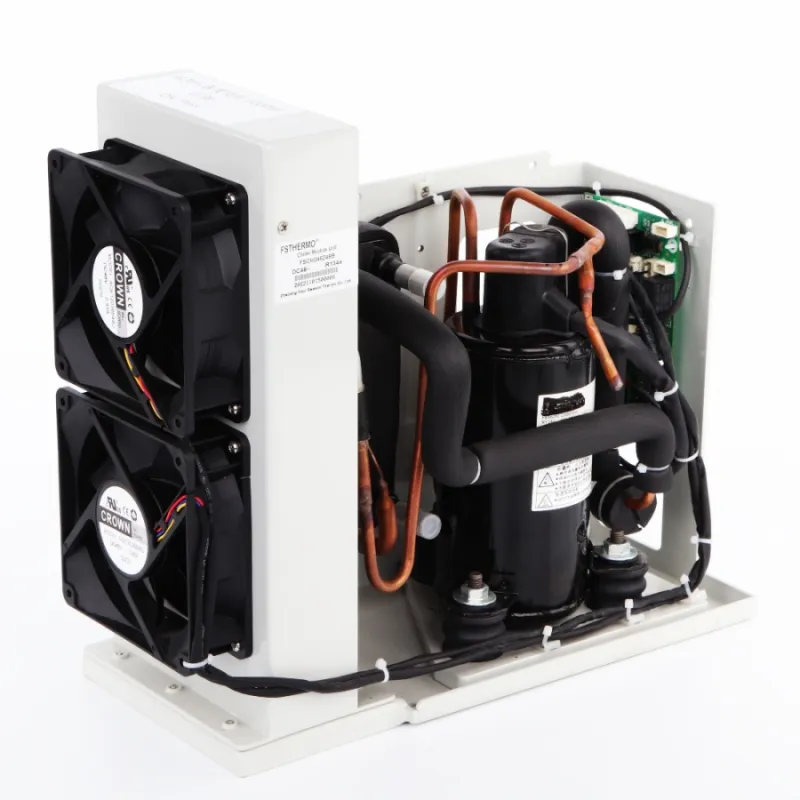

Compact liquid cooling chiller system designed for skin hair removal machines and laser treatment. This module is the smallest tiny refrigeration unit featuring a miniature compressor for micro liquid cooling systems.

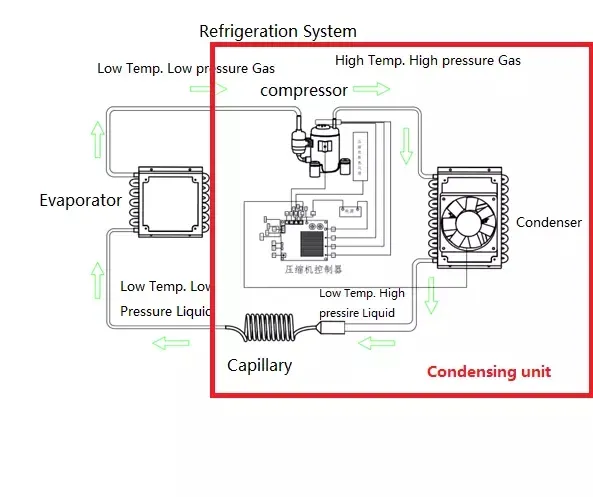

It integrates a Miniature Compressor, Compressor Driver, Mini Condenser, Mini Plate Heat Exchanger, Mini Flow Fan, and Capillary. Advantages include small size, light weight, DC 12V/24V/48V power compatibility, and a high COP with minimal power consumption.

📊Technical Specifications

Product Name	Mini refrigeration liquid chiller module unit
Model	FSCH078Z48B
Voltage	DC 48V
Cooling Capacity	600 ~ 1500W
Refrigeration Parts	Mini rotary compressor & driver, mini condenser, axial flow fan, plate evaporator, capillary
Size	320x200x270mm
Net Weight	11 kg
Certification	ISO, CE
MOQ	1 Piece

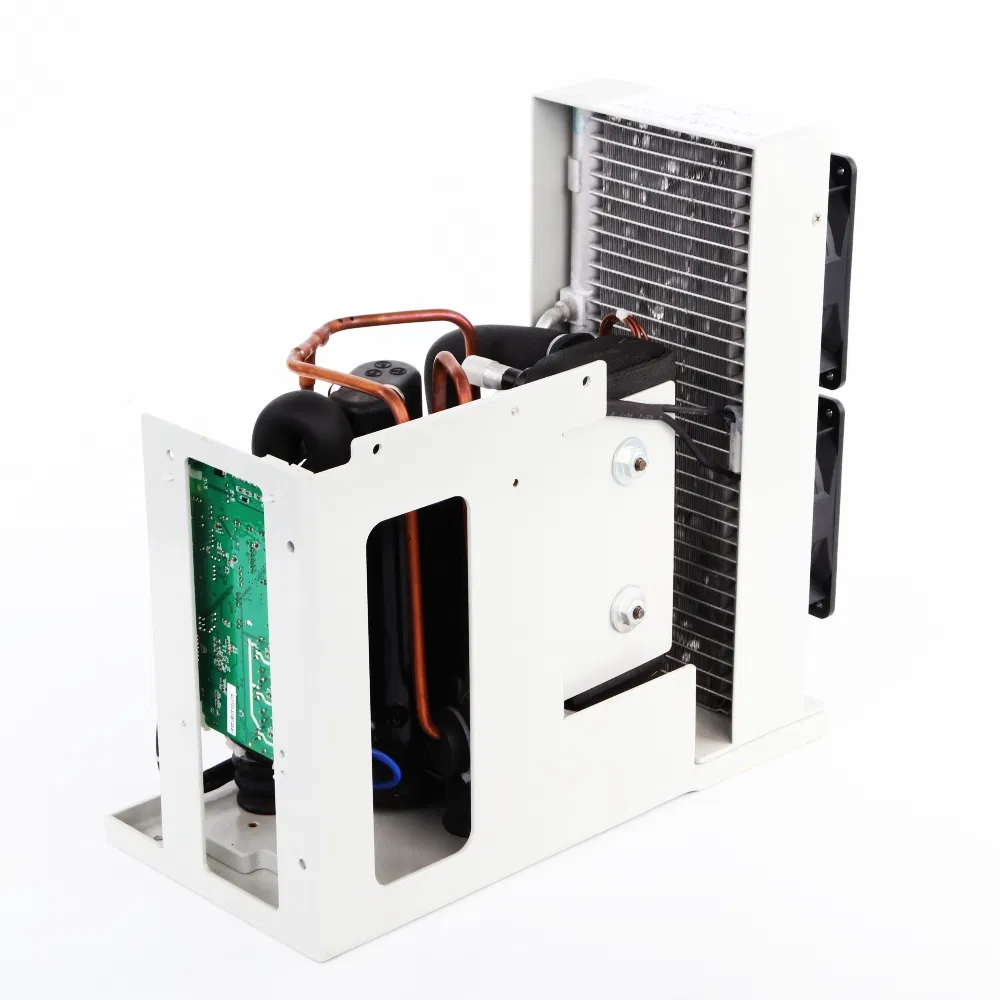

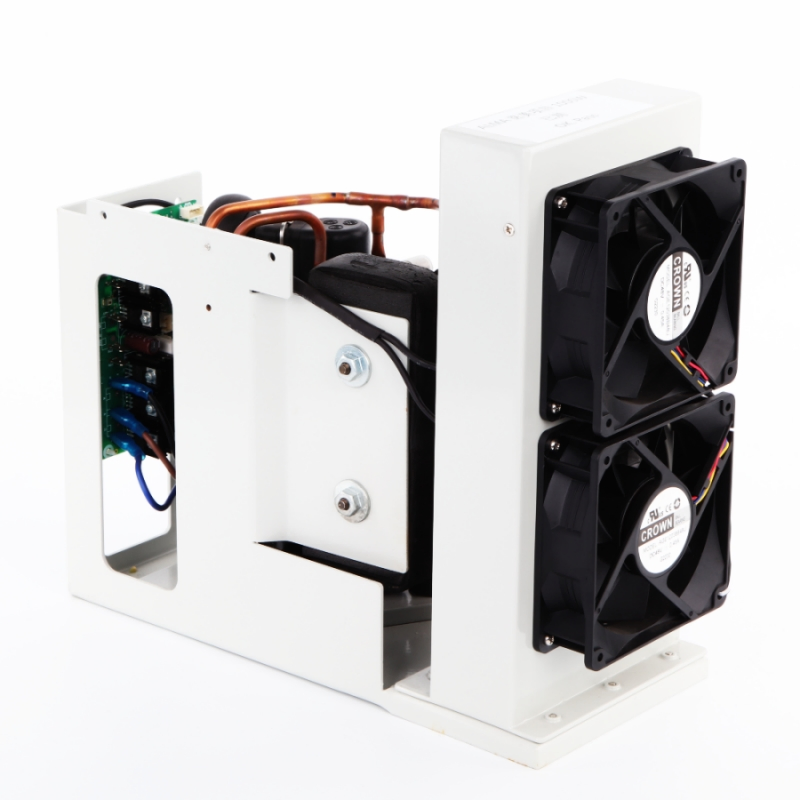

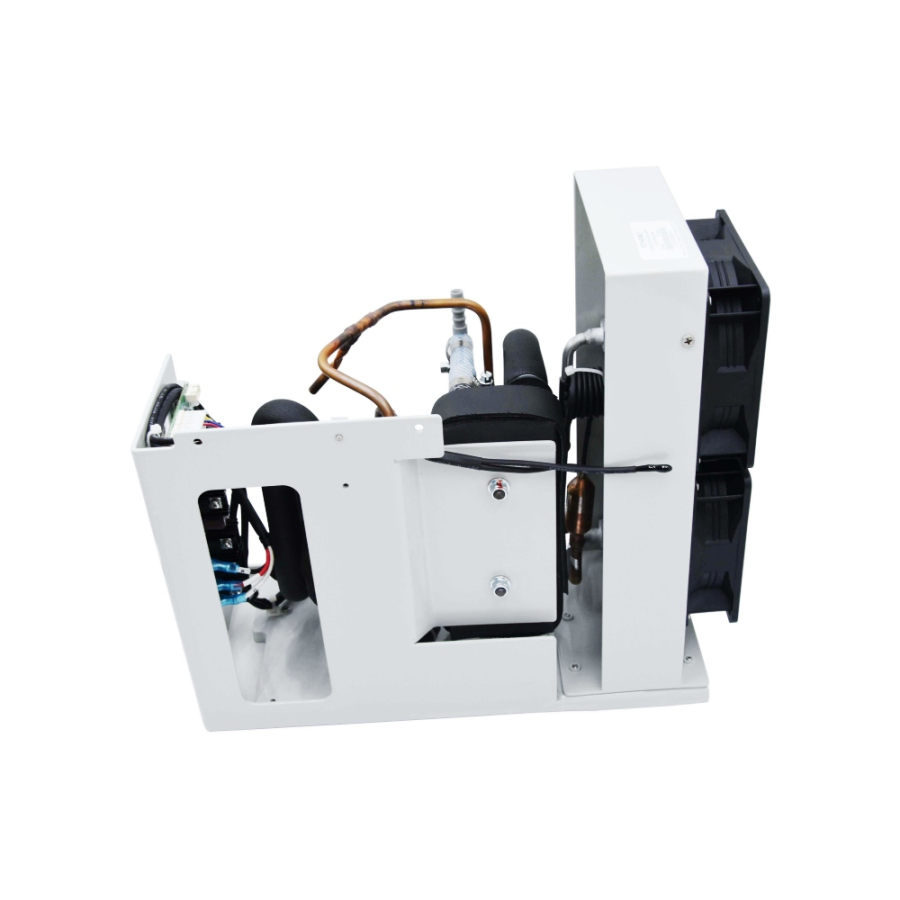

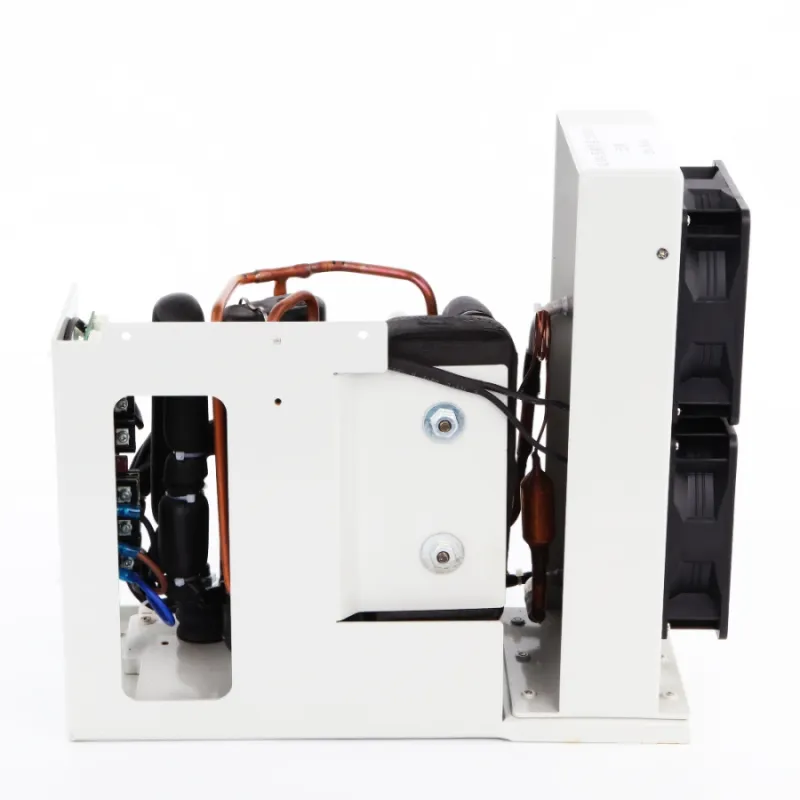

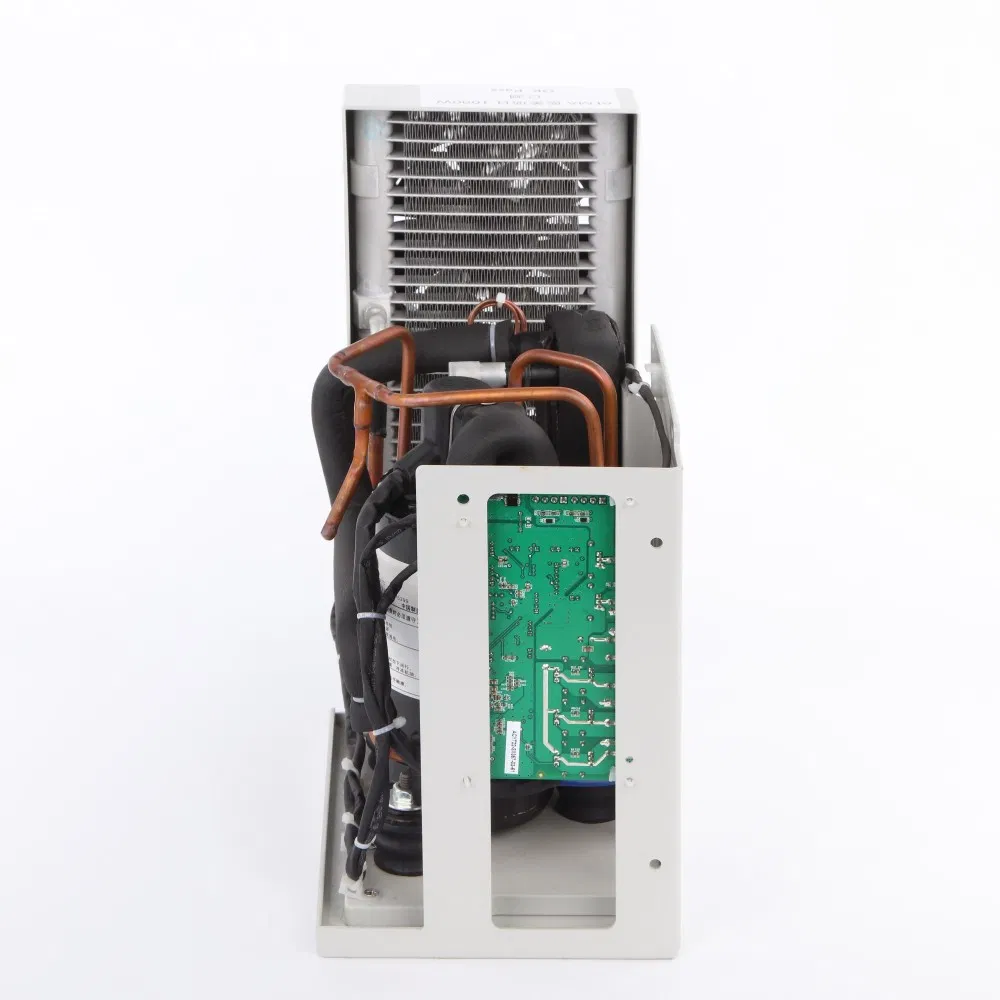

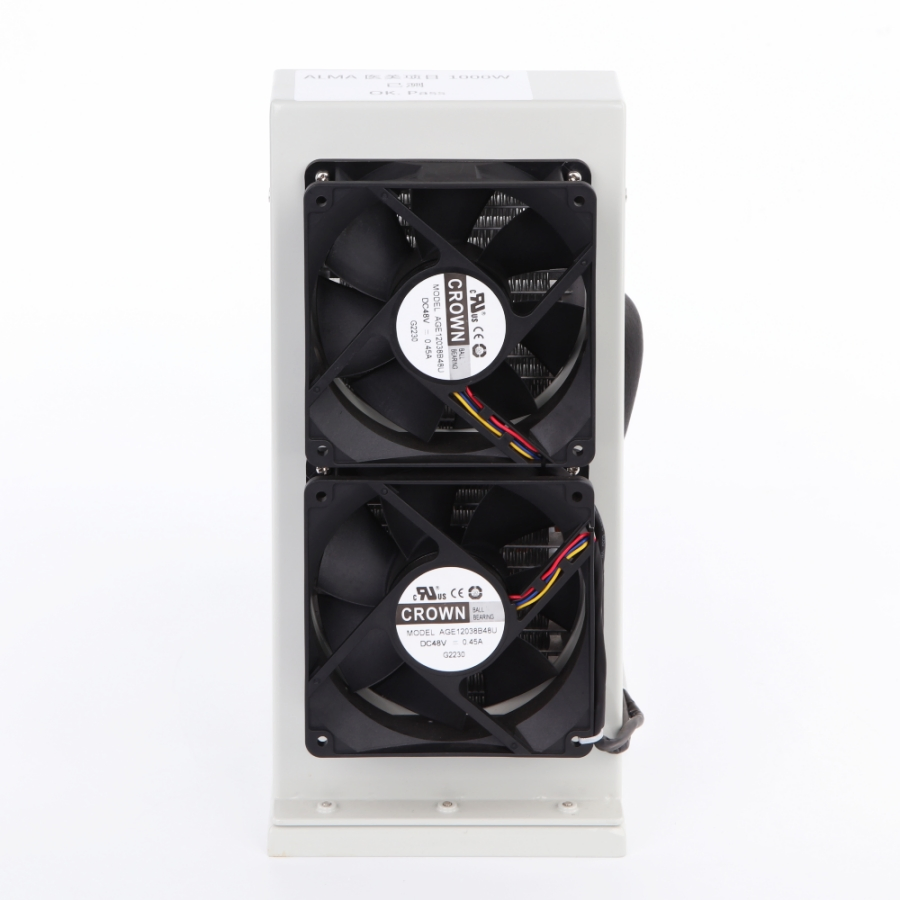

📸Product Gallery

💎Key Characteristics

Smallest size & most compact design
Low height & light weight
High COP & Low energy consumption
Environmental-friendly R134a refrigerant
Low noise and vibration
High reliability & efficiency rotary compressor
Compressor overcurrent protection
Wide evaporating temperature range
Hybrid power: DC, Battery, Solar
Precision control & variable applications

🚀Main Features

1. Safety Operation: DC power, water coolant, environmentally friendly.
2. Compact Design: Mini handheld chiller for portable applications.
3. Intelligent Control: Microprocessor-based controller.
4. Performance: High cooling efficiency with less power draw.

🛠️Applications

Laboratory device cooling
Mini glycol cooling
Laser machine cooling
PC and chip cooling
Personal cooling vests / Race car driver cooling
Beauty machine cooling
Bio-technology cooling
Mini wine or beer beverage cooler
Automotive climate control
Electronic component cooling

📦Package & Shipping

Sample order: One unit per carton box. Multiple units packed in wooden boxes.
Cargo order: One unit per carton, 50 units per pallet.

❓Frequently Asked Questions

1. What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 piece.

2. What is the expected delivery time?

Generally, it is 10 days after payment for sample orders and 25 days for bulk orders.

3. Which shipping ports are used?

We primarily ship from Ningbo or Shanghai ports.

4. What payment methods are accepted?

We accept T/T, Western Union, Paypal, and L/C.

5. What are your main product categories?

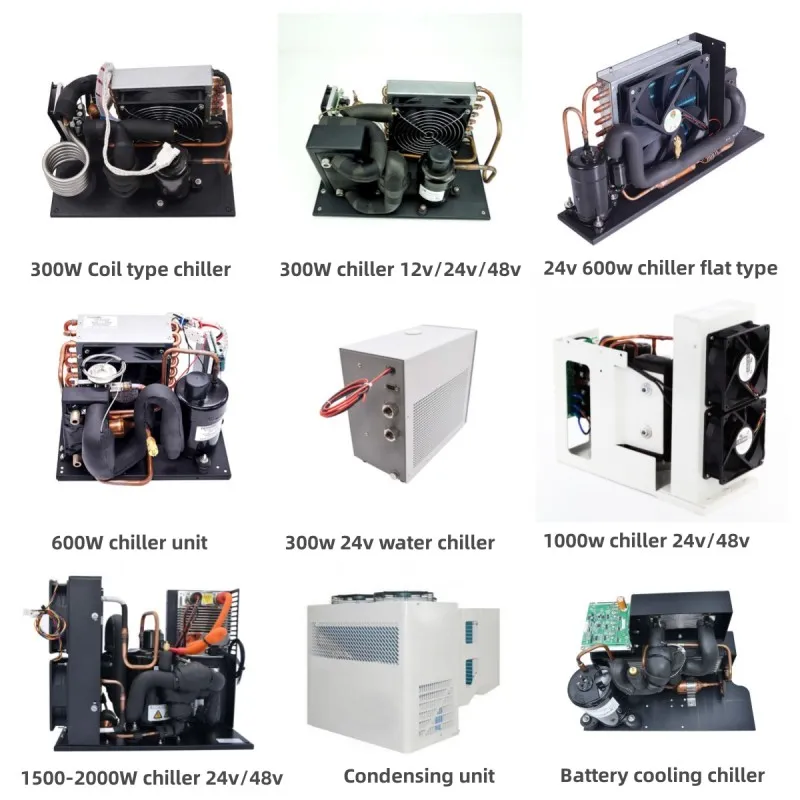

Our core products include Mini DC compressors (12V/24V/48V), Mini chiller modules, Mini condensing units, spot cooling systems, and rotary compressors for industrial cooling.

6. Is the chiller system compatible with battery power?

Yes, the system is designed for hybrid power sources including DC electrical, battery, and solar power.
