Multi Purpose Diode & ND: YAG Laser System 2 in 1 Platform for Vascular Lesion & Tattoo Removal

1 / 5

Multi Purpose Diode & ND: YAG Laser System 2 in 1 Platform for Vascular Lesion & Tattoo Removal

Customization:	Available
Type:	Laser Beauty Equipment
Theory:	Laser

Send Inquiry

Product Description

Basic Information

Model NO.

QM-110+

Application

Salon, Home

Portable

Frequency

1-10Hz

Cooling System

Air + Water + Wind + Tec + Sapphire Skin Contact

Power Supply

3000W

Laser Power

1000-1600W

Spot Size

12*12mm, 12*24mm, 12*36mm

Energy Max

1-100j/Cm²

Wavelength

808nm / 755nm / 940nm / 1064nm

Product Name

Multi Function Laser Platform

Capacity

1000 Sets/Month

Product Description

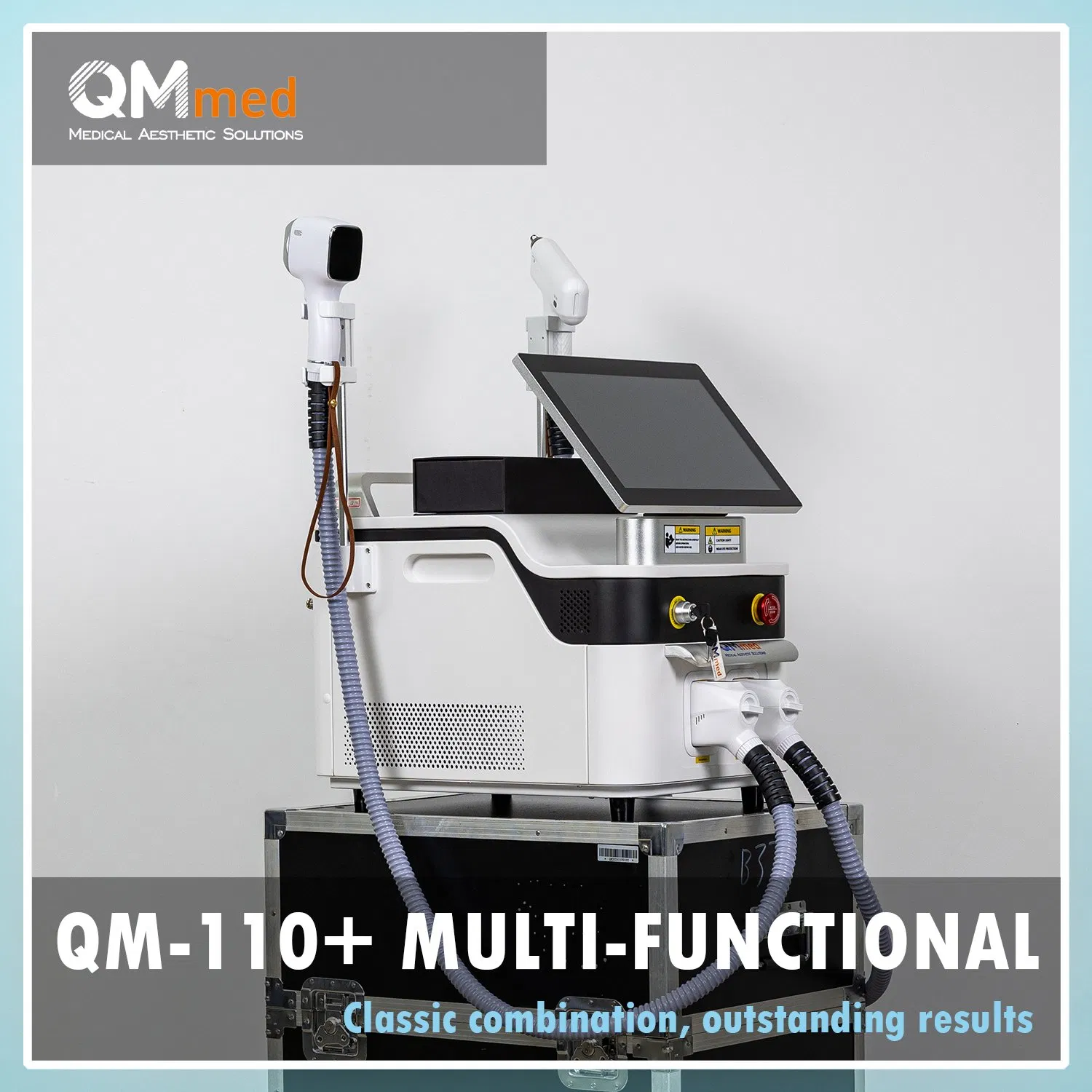

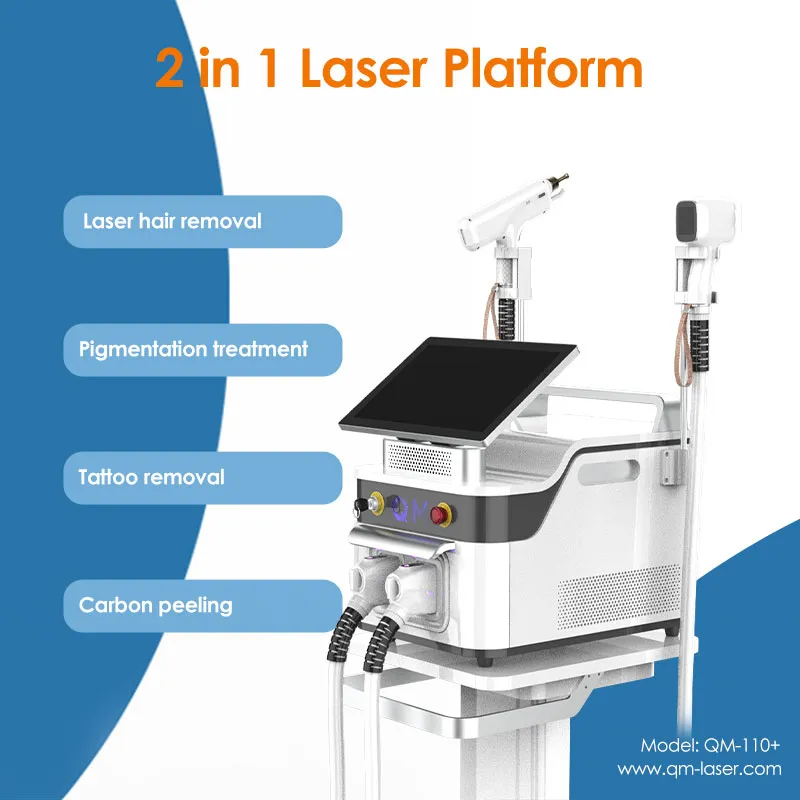

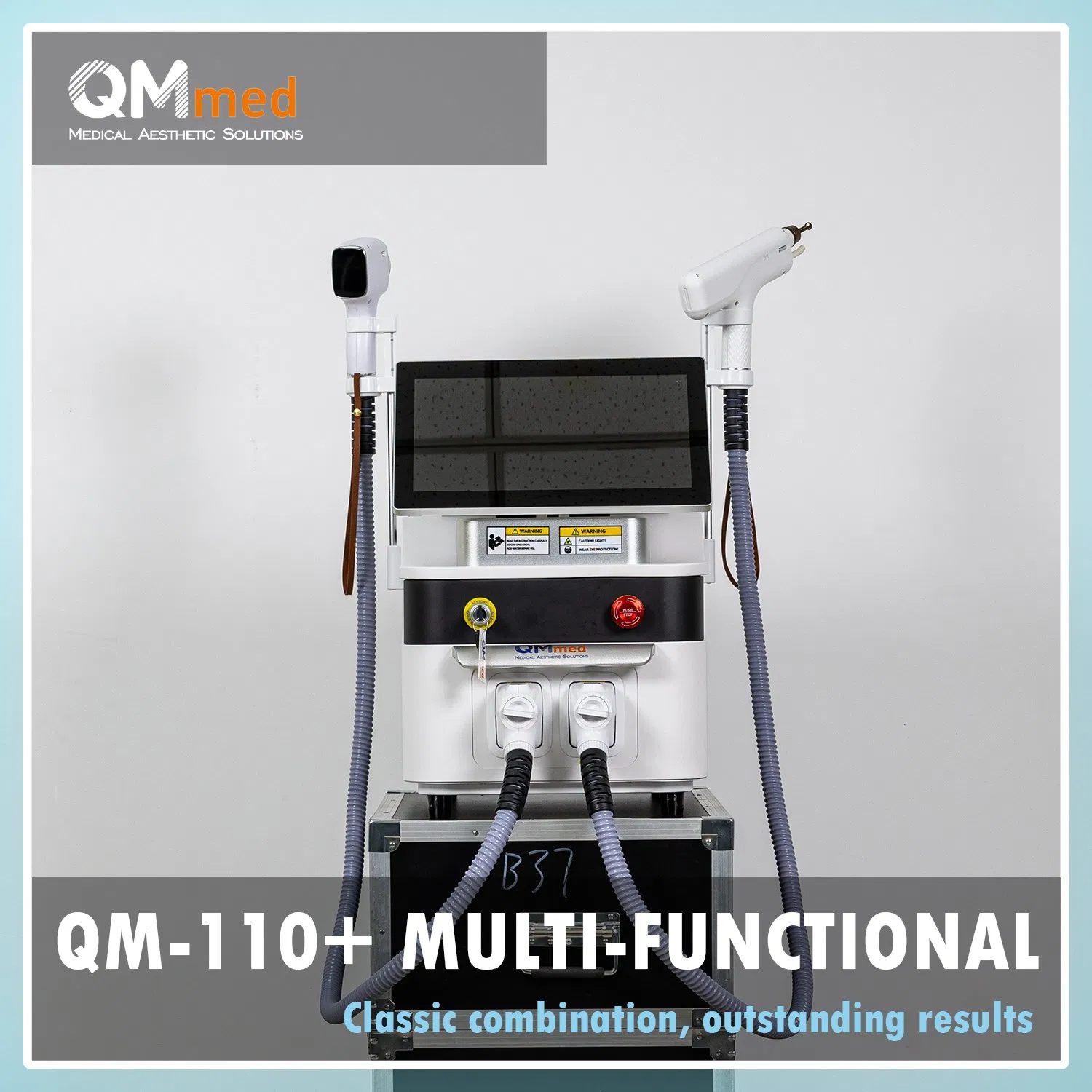

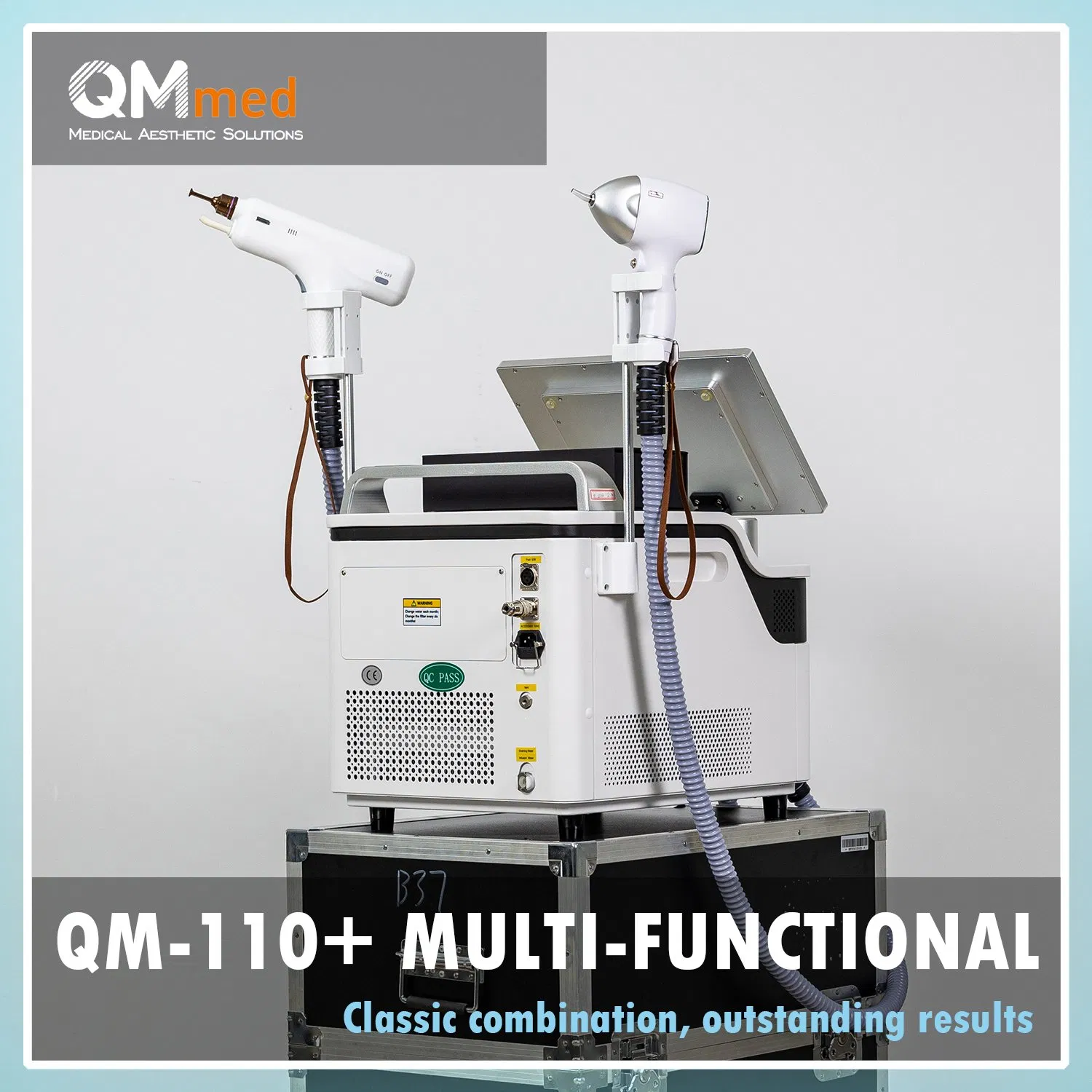

Multi Function Laser Platform QM-110+

A professional 2-in-1 system combining Diode Laser and ND:YAG technology for comprehensive aesthetic treatments.

Permanent Painless Depilation: Suitable for all skin and hair types.
Skin Rejuvenation: Restores youthful skin and brightens complexion.
Tattoo Removal: Effectively targets black, blue, red, and brown inks.
Pigmentation Removal: Clears freckles, age spots, and moles.

Core Technology

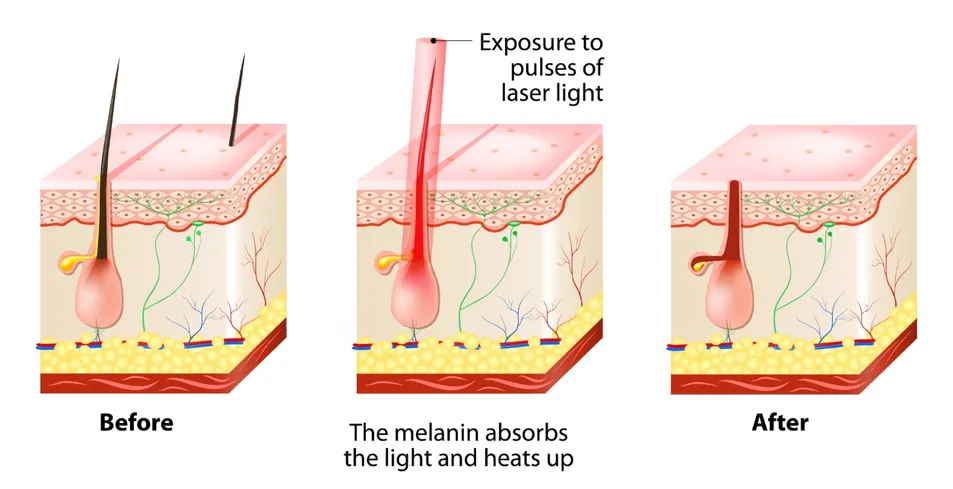

Diode Laser System

Utilizing gold standard 808nm technology, energy penetrates deep into the dermis. High average power and 10 pulses-per-second rate heat hair follicles without damaging surrounding tissue. Sapphire Dual-Chill Tip ensures safety and comfort.

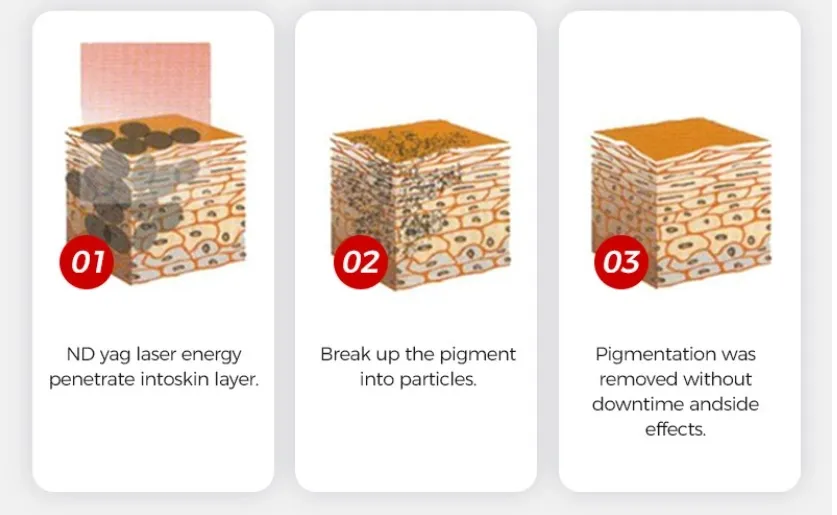

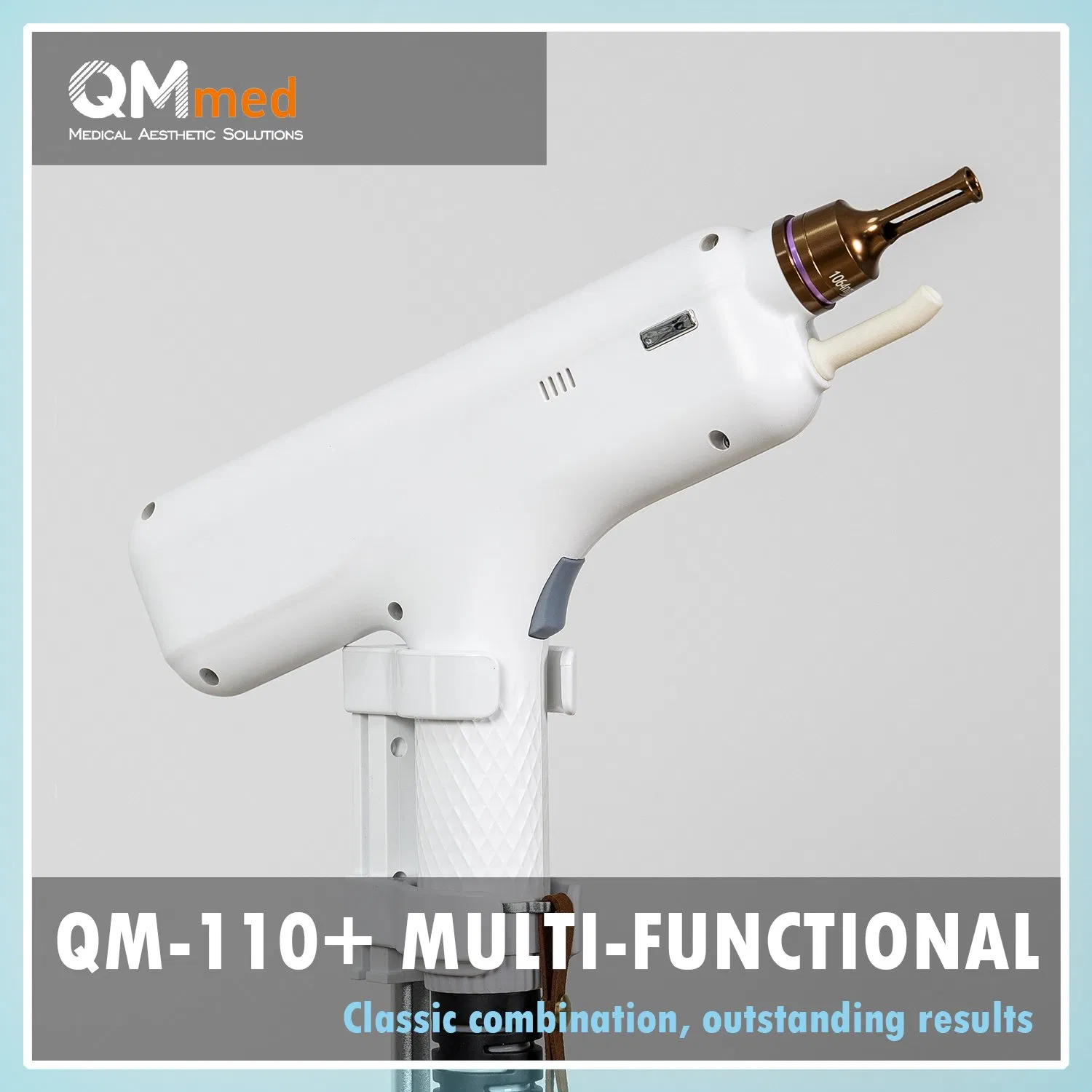

Q-Switched ND:YAG Laser

Based on selective photothermolysis, it breaks chromatophores into fragments naturally absorbed by the body. The 1064nm wavelength targets dark pigments, while 532nm handles red and brown tones.

Key Advantages

Upright Design: Stable, professional appearance for clinics.
Dual Laser Platform: Combines diode and Nd:YAG to eliminate the need for multiple devices.
No Downtime: Comfortable and non-ablative treatment allowing immediate mobility.

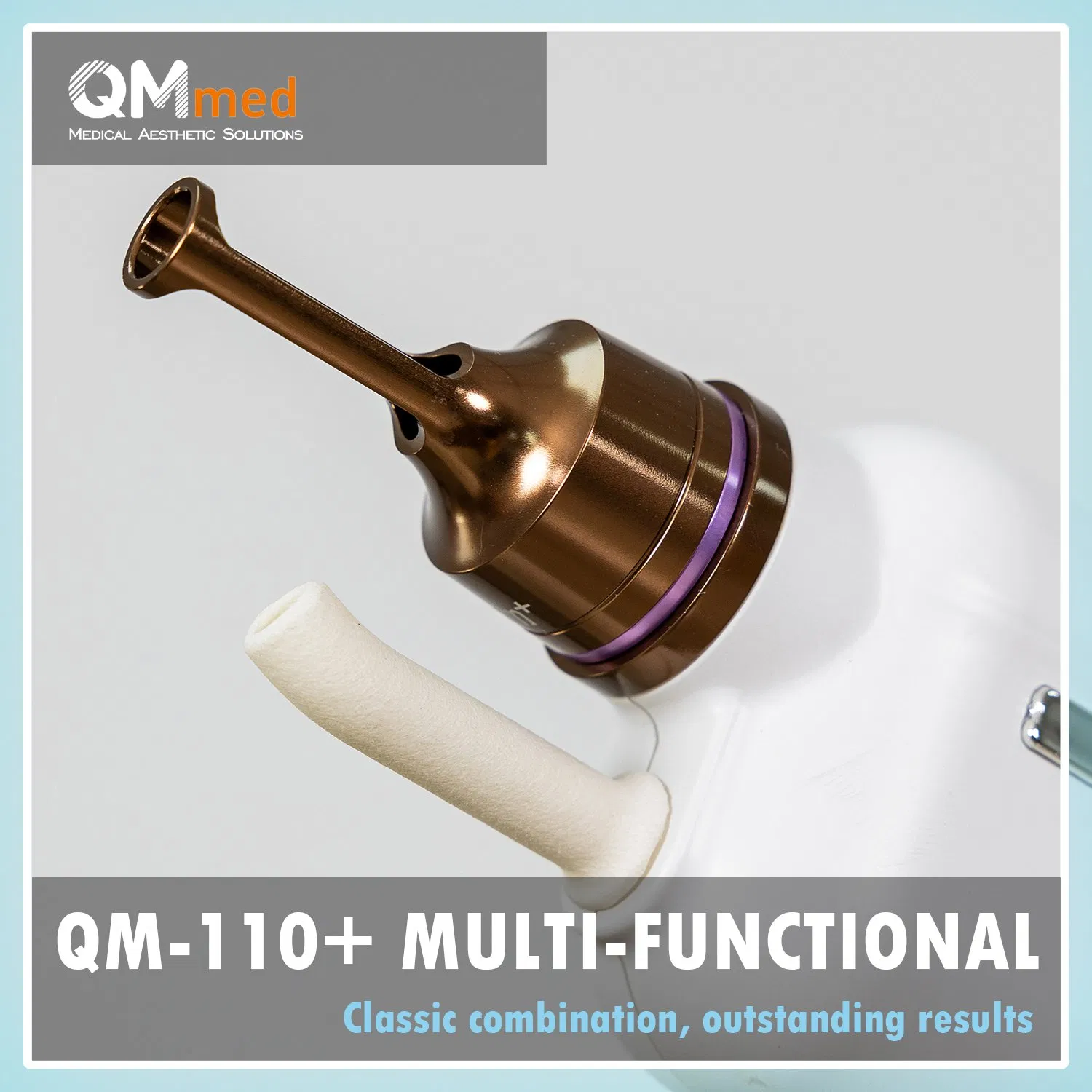

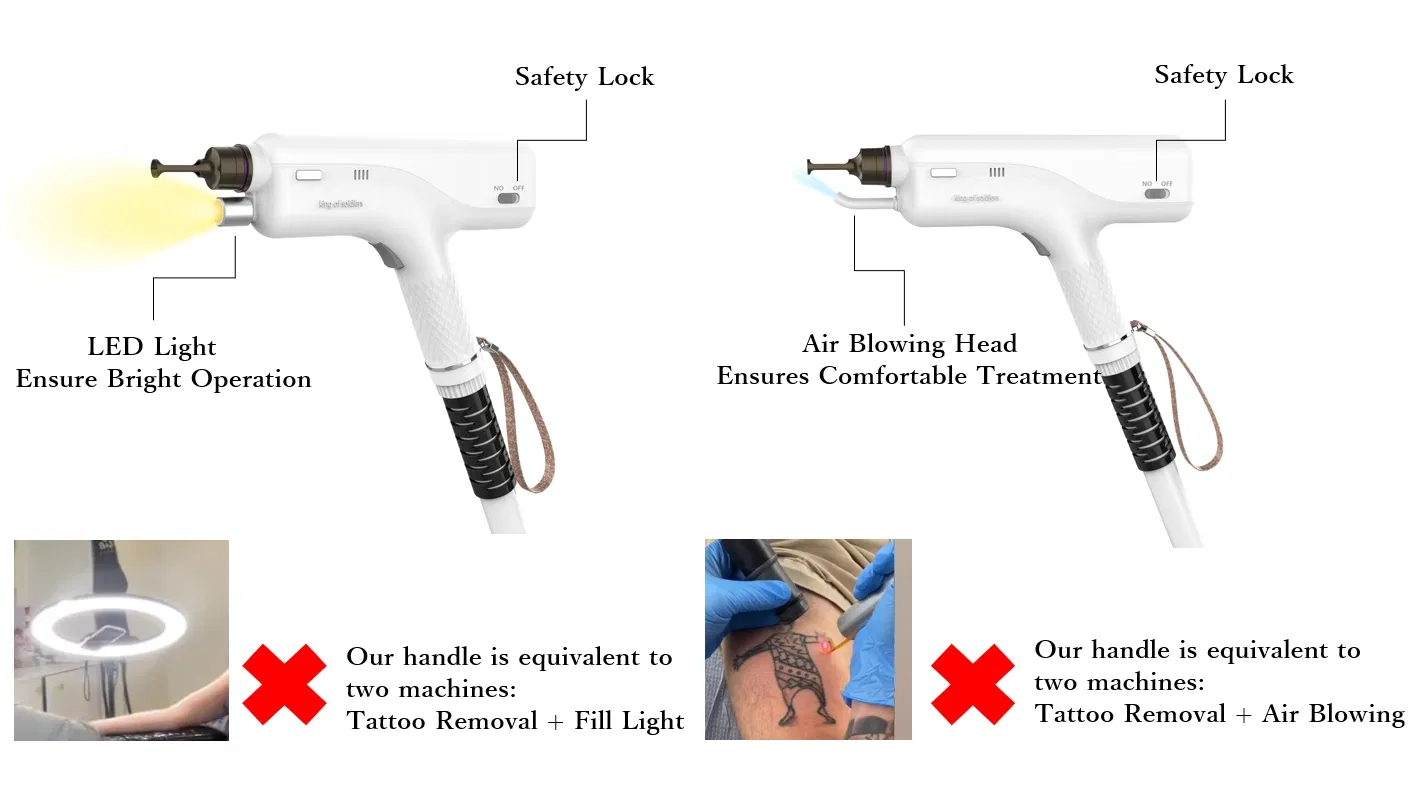

Air Cooler Head: Specialized cooling on the YAG handle for maximum patient comfort.
4K Touchscreen: 15.6-inch high-resolution interface for intuitive operation.

Technical Specifications

Feature	Diode Laser	Q-Switched Nd:YAG
Machine Power	3000W	500W
Laser Power	1000-2000W	/
Energy Max	1-100J/cm²	1-2000mJ
Wavelength	808nm / 755nm / 940nm / 1064nm	1064nm / 532nm / 1320nm

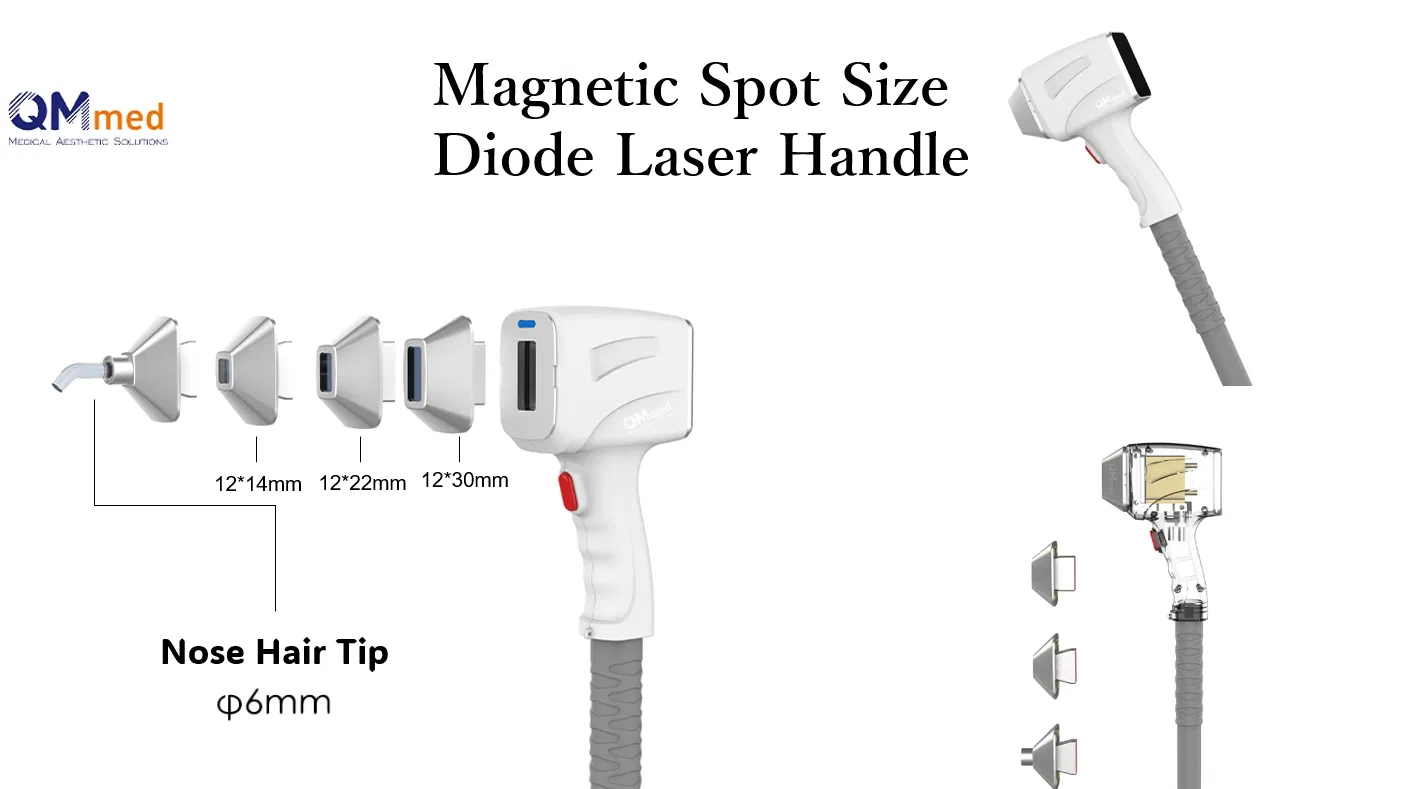

Spot Size	1212mm to 1236mm / φ6mm	2-7mm
Pulse Duration	10-300ms	<7ns
Cooling	360 Refrigeration Sheet	Air Cooling
Display	15.6" 4K True Color Touch Screen

Treatment Results & Quality

Frequently Asked Questions

1. What treatments does the QM-110+ platform provide?

It offers a versatile range of treatments including permanent painless hair removal, skin rejuvenation, tattoo removal, eyebrow/eyeliner removal, and pigment clearance (moles, freckles, age spots).

2. How is patient comfort ensured during laser treatment?

The system features multiple cooling technologies: 360-degree refrigeration sheets for the diode laser and a specialized air cooler head on the ND:YAG handle to minimize discomfort.

3. Can the laser handle different tattoo colors?

Yes, the 1064nm wavelength effectively removes black and blue pigments, while the 532nm wavelength targets red, pink, purple, and brown pigments.

4. Is there any downtime after the procedure?

No, the treatment is non-ablative and designed to be painless, allowing patients to resume their daily activities immediately.

5. What makes the operating interface special?

The device is equipped with a 15.6-inch 4K high-resolution touchscreen and an intelligent operating system, making it highly intuitive for professional operators.

6. How long does the delivery usually take?

Standard orders are typically processed and shipped within 3-7 working days after payment confirmation. Custom OEM/ODM services may require additional time.
