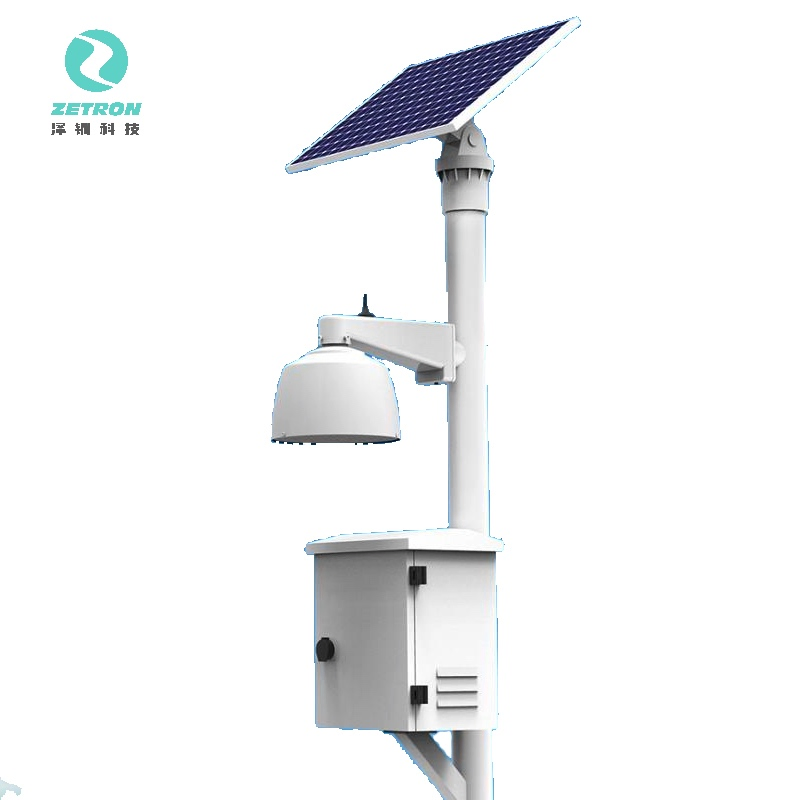

Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
1 / 5
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant
Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant

Zetron Ms800A-10 Online Odor Monitoring System Internal Big Storage in Waste Water Treatment Plant

Send Inquiry

Product Description

🚀 Product Description
The MS800A Online Odor Monitoring System, often referred to as an air quality monitoring terminal, is a cutting-edge solution that combines electrochemical sensor technology with laser sensor technology. It is designed to monitor critical air pollutants including SO2, O3, CO, NO2, PM2.5, and PM10 parameters.
By utilizing a unique temperature and humidity compensation algorithm alongside patented technology, this system minimizes environmental interference, ensuring highly accurate results for gas detection and dust measurement even in varying climates.

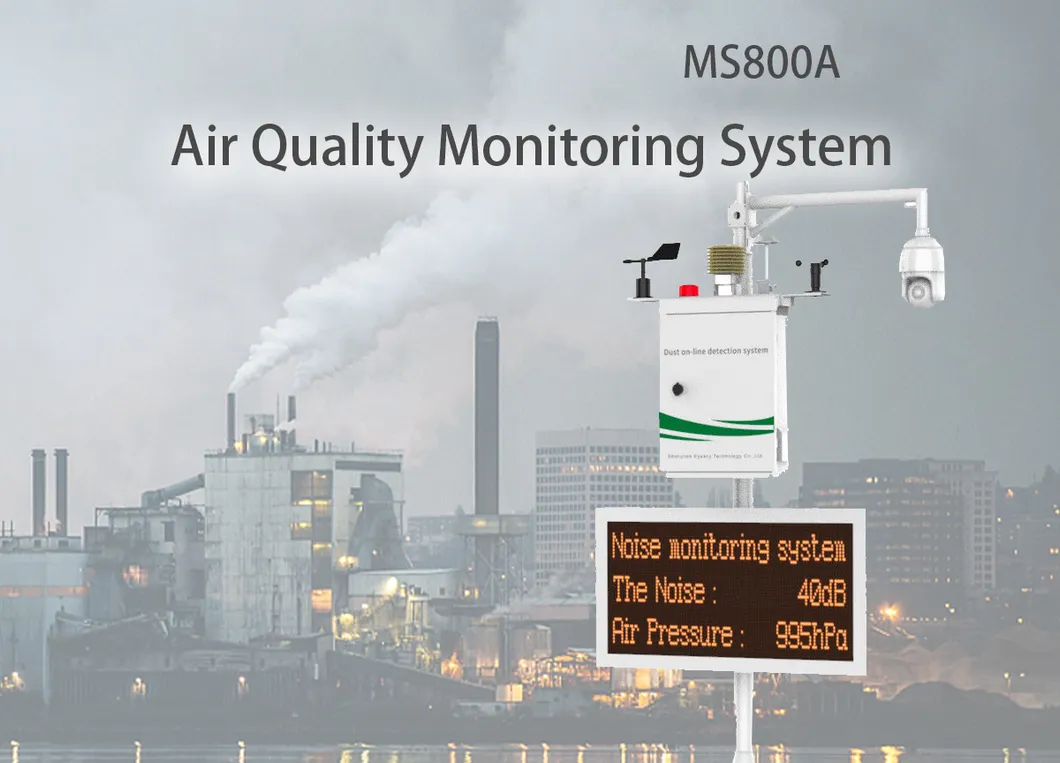

MS800A Monitoring System
🌟 Product Features
✔
Modular design, ideal for large-scale grid layouts.
✔
Dynamic heating dehumidification control for precise particulate sampling.
✔
Simultaneous measurement of PM10, PM2.5, TSP, SO2, NO2, CO, and O3.
✔
Long-life, anti-interference sampling power system (quiet and efficient).
✔
Industrial-grade data transmission with dual-channel communication for continuity.
✔
Embedded processor suitable for harsh outdoor environments.
✔

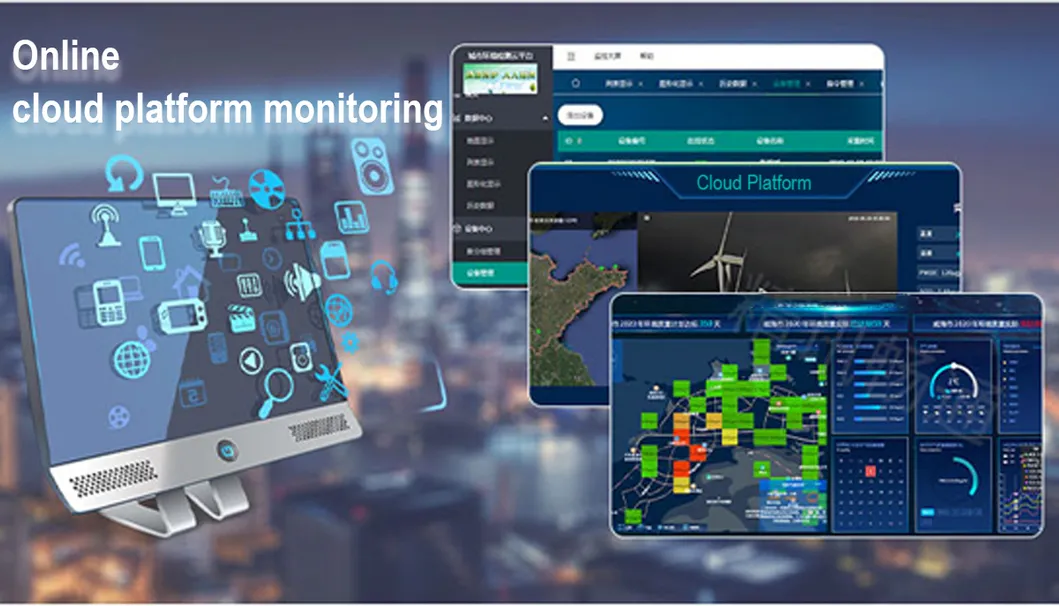

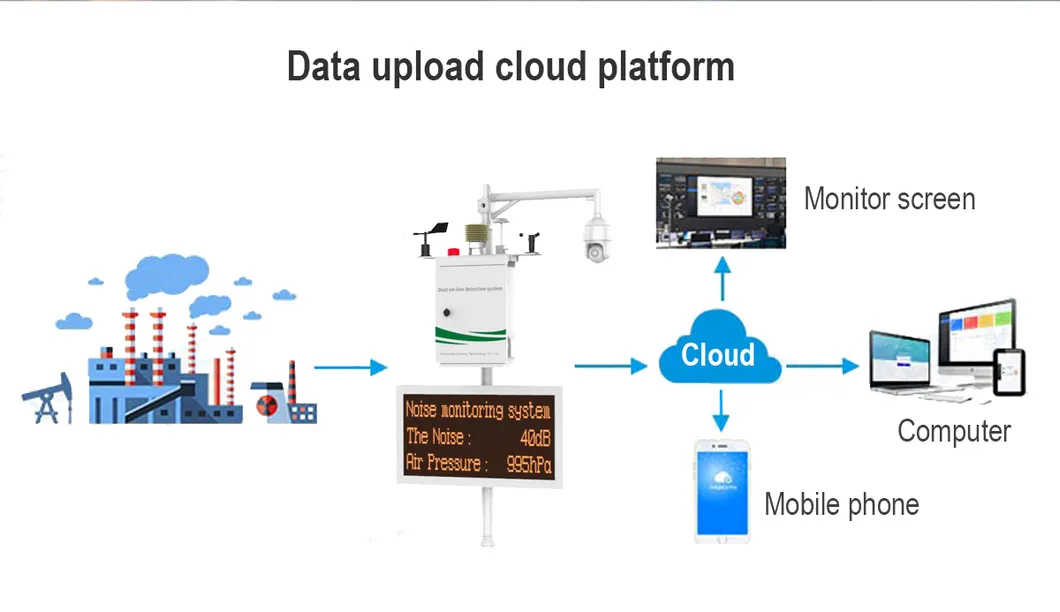

Remote data transmission, status reading, and fault diagnosis.

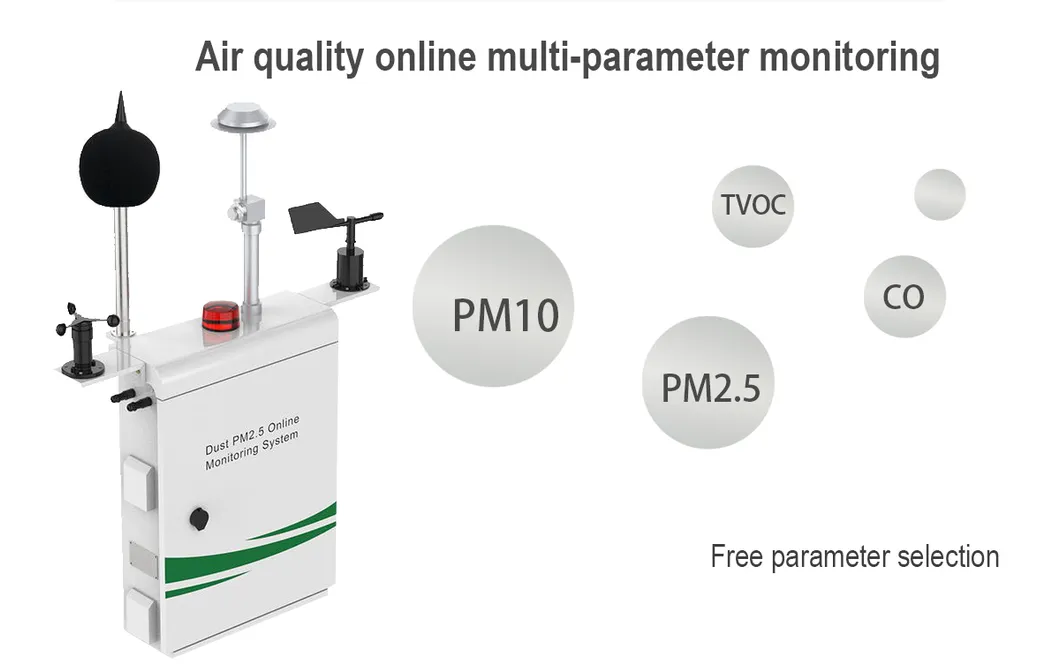

MS800A Feature Display 1

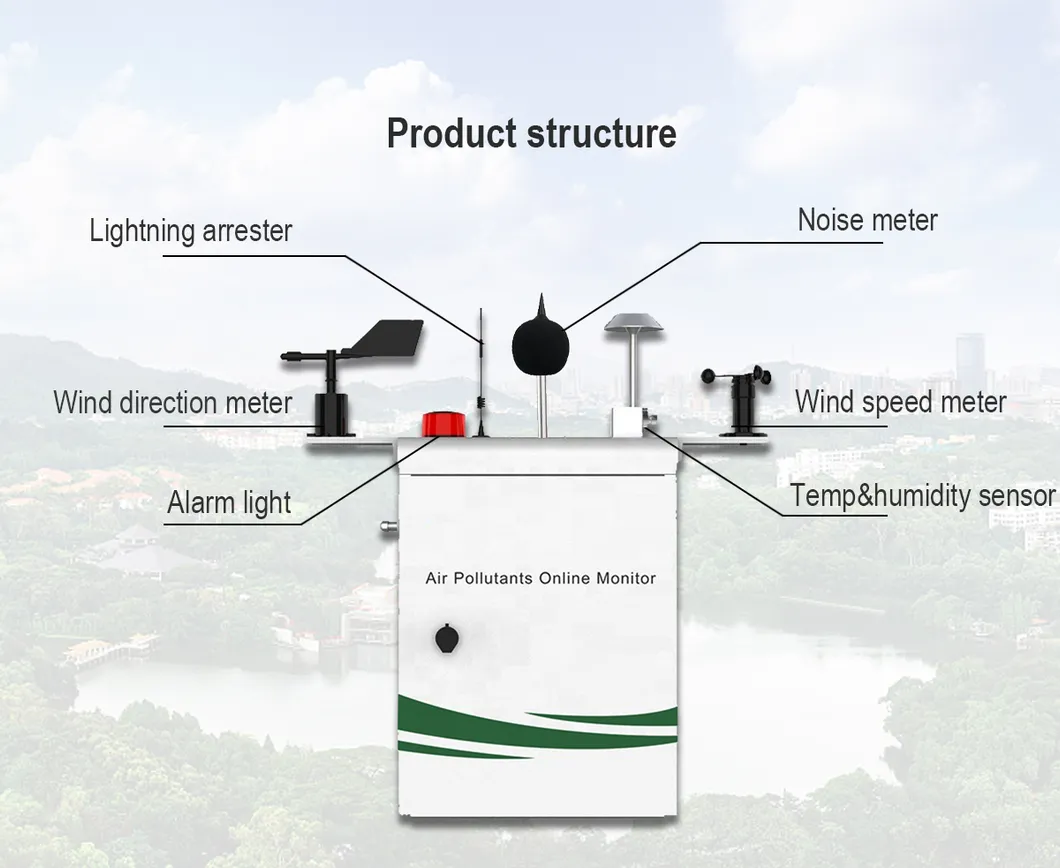

MS800A Feature Display 2
📊 Product Specifications
General Specification
Model MS800A Materials Cold-roll steel sheets
Detection Mode Diffuse Installation Post installation
Dimension 620*440*160mm (L*W*H) Work Temp -20ºC to 50ºC
Data Output RS485 Modbus, 4G LTE (Optional) Work Hum 10%-95%RH (No condensation)
IP Grade IP53 Power AC220V/50Hz, Solar power optional
Particulate Matter Parameters
Cutter Whirlwind physical cutter Resolution 1ug/m3
Diameter PM2.5, PM10, TSP Heating Automatic
Internal components
Gas sensor technology
Outdoor setup
Product Layout
🌍 Wide Application
The MS800A is highly versatile and suitable for:
  • Urban residential areas and fixed pollution source monitoring for industrial enterprises.
  • Unorganized open space environment monitoring for road traffic and catering.
  • Agricultural production areas and tourist attractions.
  • Boundary transport monitoring of key pollution sources.

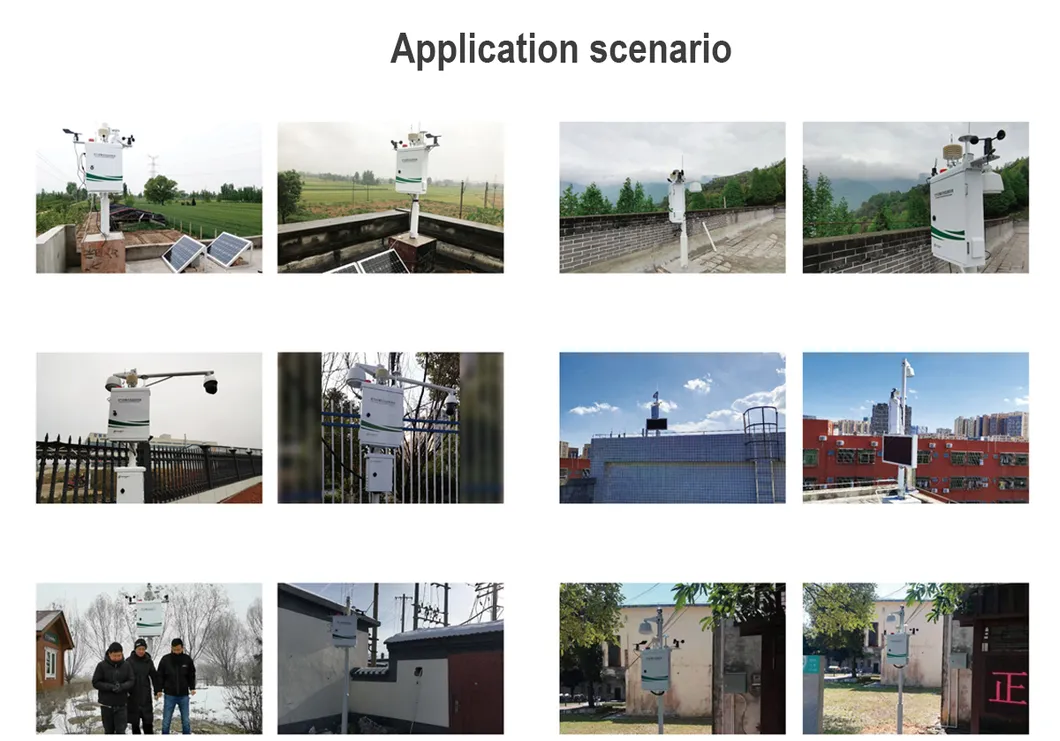

Application Scenarios
🏢 Professional Manufacturing

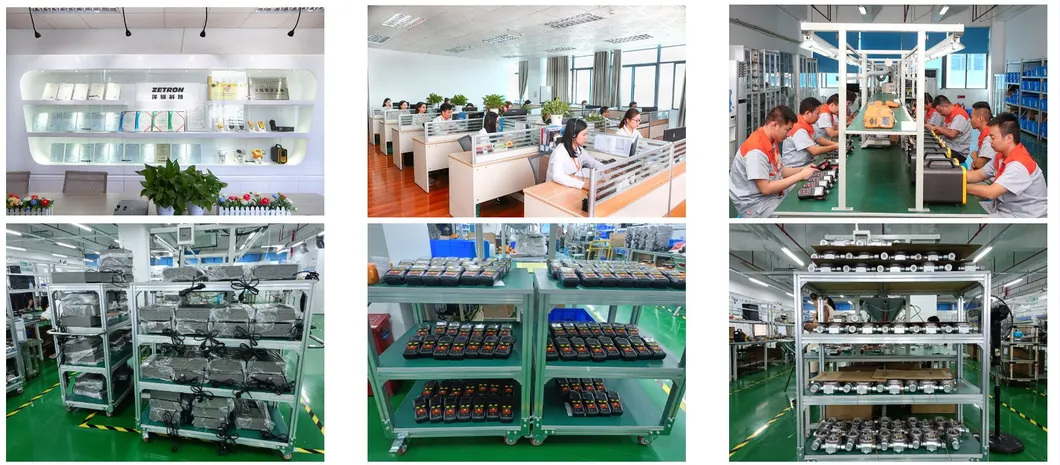

Production Facility
Quality Control
❓ Frequently Asked Questions
What gases can the MS800A system detect?
The system can simultaneously monitor SO2, O3, CO, NO2, and TVOC, along with optional sensors for H2S and NH3.
How does the system handle environmental humidity?
It features dynamic heating dehumidification control and a unique temperature/humidity compensation algorithm to ensure detection accuracy in wet conditions.
Is the MS800A suitable for remote monitoring?
Yes, it supports remote data transmission via RS485 Modbus and 4G LTE, allowing users to read system status and perform fault diagnosis remotely.
What is the protection rating for outdoor use?
The MS800A has an IP53 rating and is built with cold-roll steel sheets, making it durable for harsh outdoor environments.
Can this system be powered by solar energy?
Yes, while the standard power is AC220V, solar power is an available option for remote or off-grid installations.
Does it monitor particulate matter?
Absolutely. It can measure PM2.5, PM10, and TSP (Total Suspended Particulates) using a whirlwind physical cutter sampling method.
